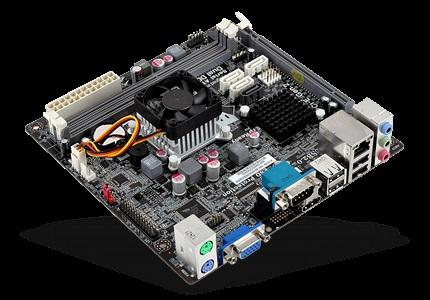

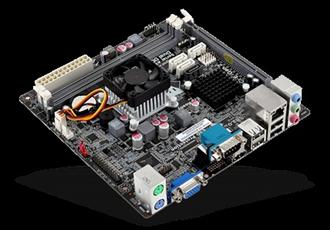

MB ECS 1170BAT J1800

CPU º Onboard Intel® Celeron 847/807/1037U processors º Solid Capacitor for CPU side CHIPSET º Intel® NM70 Express Chipset GRAPHICS º Supports DirectX® 10.1 MEMORY º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket EXPANSION SLOT º 1 X PCI Express X16 Gen 2.0 slot(s) Storage º Support by IntelNM70 Express Chipset • 1 X Serial ATAIII 6Gb/s • 3 X Serial ATAII 3Gb/s Audio º VIA 1705 ?VIA® VT1705 6-channel High Definition audio CODEC ?Compliant with HD audio specification for a whole new immersive surround sound experience ?3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR ?Low Power Consumption ?Capability for “full rate” BluRay / DVD / HD DVD support. LAN º Realtek 8111E Gigabit Fast Ethernet Controller º (Realtek 8105E 10/100Mbps Fast Ethernet Controller optional) USB º Support by NM70 Express Chipset • 8 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s) REAR PANEL I/O º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Serial port (COM) º 1 X Audio port (Line Out/Line In/Mic In) º 1 X HDMI port(s) º 1 X DVI-I port(s) (optional) º 1 X D-Sub (VGA) port(s) º 4 X USB2.0 port(s) CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply connector º 1 X 3-pin SYS_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Onboard Buzzer º 2 X USB 2.0 header • Support additional 4 USB ports º 1 X S/PDIF out header º 1 X SATA III 6Gb/s connector(s) º 3 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X Chassis intrusion header º 1 X LVDS connector (optional) º 1 X LDC header SYSTEM BIOS º AMI BIOS with 32 MB SPI Flash ROM º Over-Clocking º Multi-Language BIOS FORM FACTOR º Mini ITX Form Factor º 170mm X 170mm OS Support º Windows XP 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 64-bit Certifications º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification Bundled Software º ECS Intelligent EZ Utility : eBLU, eDLU, eSF º Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
